Place of Origin: | China |
Brand Name: | ACCPCB |
Certification: | ISO, UL, SGS,TS16949 |
Model Number: | P1116125 |
Minimum Order Quantity: | 10PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Vacuum packing with desiccant |
Delivery Time: | 10-12days |
Payment Terms: | L/C / T/T / Western Union / Paypal |
Supply Ability: | 30,000SQ.M/Per Month |
Material: | Aluminum Circuit Board | Thickness: | 0.6MM |
---|---|---|---|
Surface Finish: | HAL LEAD FREE | Layer: | 2L |
Copper Thicknes:: | 1oz In Each Layer | PCB Standard: | IPC-A-610 D |
Type: | OEM PCB,customized PCB | Min Holes Size: | 4mil |
Min. Line Width: | 4mil | Min Copper Thicness: | 20um |
Solder Mask Color: | Green,yellow, Red, White, Black Etc. | Application: | LED Strip |
High Light: | 0.6mm Rigid LED Light PCB Board,2 Layers 0.6mm LED PCB Board,Aluminum Core 0.6mm LED PCB Board |

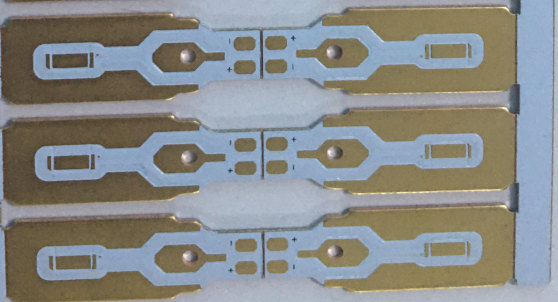

2 Layers Aluminum Core 0.6mm Rigid LED Light PCB Board for led lighting
Production description :
this board is double sided layer. it is use for LED light. all of our PCB are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order.
Key Specifications of Aluminium PCB for LED :
Production Types: | Rigid PCB |
Layer : |
2Layers |
Material : | aluminum substrate pcb |
Copper Thickness : | 1/1oz |
Board Thickness : | 1.20mm |
Min. Finish Hole Size : | 8 mil (0.10mm) |
Min. Line Width : | 4 mil |
Min. Line Spacing : | 4 mil |
Surface Finishing : | ENIG,OSP,HASL,Immersion Gold,Gold Plating |
Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
Working panel size : | max:1200mmX600mm (47'' X24'') |
Outline profile: | Punching, Routing , CNC routing + V-cut |
Solder mask : | LPI Solder mask, Peelable mask |
Solder Mask Color : | Blue, black,yellow, matte green |
Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
Silkscreen color : | White |
Twist and Bow : | no more than 0.75 % |
Products Application:
Our products are widely used in meter, medical, solar energy, mobile, communication, industrial control, power electronics,security, consuming, computer, automotive, aerospace, military and so on.
Rigid PCB Technical Capability:
Items | Technical Capability | ||
Layers | 1-28 layers | Min. line width/space | 4mil |
Max.board size (single&doule sided) |
600*1200mm | Min.annular ring width: vias | 3mil |
Surface finish |
HAL lead free,gold flash Immersion silver,Immersion gold ,Immersion Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
|
Board materials |
FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); heavy copper, Metal base clade laminate |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
Base copper thickness(Inner and outer layer) |
Min. thickness: 0.5 OZ Max.thickness: 6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
|
Max.board thickness(single&doule sided) | 3.20mm |
Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
Lead Time :
Lead Time | 2 /L | 4 /L | 6/ L | 8/ L |
Sample Order | 3-5days | 6-8days | 10-12days | 12-14days |
Mass Production | 7-9days | 8-10days | 12-15days | 15-18days |
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
