Finish Thickness: | 1.0±10%mm | Minimum Via Dia: | 0.2mm |
---|---|---|---|
Surface Finish: | Immersion Silver | Dielectric Constant: | 4.2 |
Application: | Electronic Led Panel | Copper Thickness: | 1oz |
Base Material: | FR-4 | Min. Line Spacing: | 0.2 |
Min. Line Width: | 0.1mm | Min. Hole Size: | 0.20 Mm |
Type: | SMD LED | Board Thickness: | 0.05-0.75mm |
High Light: | 1oz Led Printed Circuit Board,1.0mm Led Printed Circuit Board,1oz Led Panel Light Pcb |

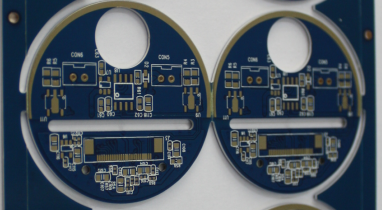

1.0mm Thickness 1oz Led Printed Circuit Board Led Panel Light Pcb
Production description :
this board is 2layer with 1oz copper thickness. it is used led panel . we can accept any quantity board such as PCB prototype,samll volum, middle and large volume . no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.
Key Specifications/Special Features:
Material : |
FR4 2layer |
Finish thickness : |
1.0 ±10%mm |
Minimum width/spacing : |
0.127 / 0.127mm |
Minimum via dia : |
0.2mm |
Surface finish : |
Immersion silver |
Application : |
Electronic module |
Solder mask : |
Blue |
Legends : |
White |
Certification : |
ISO UL ROHS SGS |
Outline profile: |
Punching, Routing , CNC routing + V-cut |
Solder mask : |
LPI Solder mask, Peelable mask |
Certificate : |
UL, CQC, TS16949, ISO14000, ROHS |
Board thickness: |
0.2-3.2mm |
Min finished hole size: |
0.10mm |
Impedance control: |
+/- 10% |
Advantages:
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours
Full range of testing services:
▪ AOI, function testing, In circuit testing
▪ 3D paste thickness test
▪ Flash testing and earth bonding tests can also be undertaken where required
▪ Using our X-ray machine, we test PCBs to component level and all wiring is fully inspected and tested
▪ Each board is carefully examined by our dedicated inspection team using AOI and high magnification viewers
FAQ :
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
