| Material: | FR4 Fiber | Application: | LED Light |
|---|---|---|---|
| Cooper Thickness: | 1oz Each Layer | Board Thickness: | 1.0mm |
| Surface Finish: | OSP | Feature: | Rigid Circuit Boards |
| Copper Thickness: | 0.5oz-6oz,0.3-3oz | Min. Line Spacing: | 0.1mm/4mil |
| Min. Line Width: | 0.1mm/4mi | Min. Hole Size: | 0.10mm |
| High Light: | 1.0mm Smd Led Pcb Board,Osp Surface Led Printed Circuit Board,1oz Smd Led Pcb Board |
||

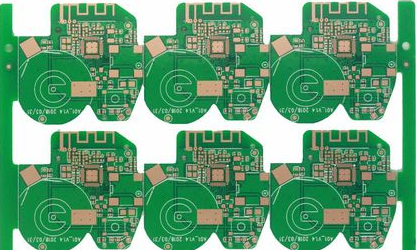

Fr4 1.0mm Led Printed Circuit Board Smd Led Pcb Board Osp Surface Finishing
Production description :
this board is 4 layer rigid pcb. it is used for led light . all of our board are met UL, ISO9001, TS1694 certification etc.no MOQ request for new boards, for repeat order, just meet 3sq.m.
Key Specifications of single PCB board :
| Production Types: | Rigid PCB |
| Layer : | 4Layer |
| Base Material : | FR4 fiber |
| Copper Thickness : | 1 oz |
| Board Thickness : | 1.0mm |
| Min. Finish Hole Size : | 8 mil (0.10mm) |
| Min. Line Width : | 4 mil |
| Min. Line Spacing : | 4 mil |
| Surface Finishing : | OSP |
| Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
| Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
| Working panel size : | max:1200mmX600mm (47'' X24'') |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Solder mask : | LPI Solder mask, Peelable mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Twist and Bow : |
no more than 0.75 % |
Quality Goal:
| Category | Performance indicator | Quality Goal |
|
Delivery |
Customer service rate | 99.9% |
| Semi Finished product | Process inspection pass rate | 100% |
| Finished product | FQA Rebate rate | 0.1% |
| Scrapped | 1L scrap rate | 0.5% |
| 2L scrap rate | 1% | |
| Multi Layer scrap rate | 2% | |
| Customers | Customer complaint rate | 0.8% |
| Customer return rate | 0.5% | |
| Customer satisfaction | 99% |
Product Application Field :
FAQ
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
3. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
4. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
