| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1116129 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-12days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Per Month |
| Material: | Glass Fiber Epoxy Copper Clad Laminate | Thickness: | 1.0MM |
|---|---|---|---|
| Surface Finish: | OSP | Layer: | 4L |
| Copper Thicknes:: | 1.5 Oz In Each Layer | PCB Standard: | IPC-A-610 D |
| Type: | OEM PCB,customized PCB | Min Holes Size: | 4mil |
| Min. Line Width: | 4mil | Min Copper Thicness: | 20um |
| Solder Mask Color: | Green,yellow, Red, White, Black Etc. | Application: | LED Strip |
| High Light: | UL 94V0 LED Light PCB Board,1.0MM LED Light PCB Board,1.0MM Tube Light Control Circuit Board |
||

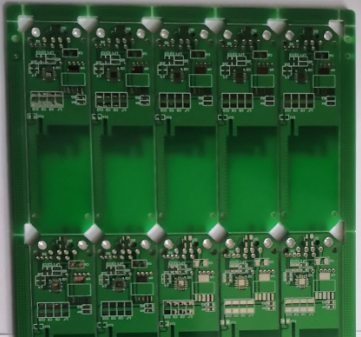

Rigid UL 94V0 LED Light PCB Board Tube Light Control Circuit Board
Production description :
this material is UL94V0 fr4. it is use for LED light contorls. all of our PCB are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order. for repeat order, it has to meet 3sq.m.
Key Specifications of LED PCB board :
| Production Types: | Rigid LED PCB |
|
Layer : |
4 Layers |
| Material : | fiber glass epoxy |
| Copper Thickness : | 1.5/ / 1/ 1 / 1.5oz |
| Board Thickness : | 1.20mm |
| Min. Finish Hole Size : | 8 mil (0.10mm) |
| Min. Line Width : | 4 mil |
| Min. Line Spacing : | 4 mil |
| Surface Finishing : | Immersion Gold |
| Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
| Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
| Working panel size : | max:1200mmX600mm (47'' X24'') |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Solder mask : | LPI Solder mask, Peelable mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Twist and Bow : | no more than 0.75 % |
Products Application:
Our products are widely used in meter, medical, solar energy, mobile, communication, industrial control, power electronics,security, consuming, computer, automotive, aerospace, military and so on.
Rigid PCB Technical Capability:
| Items | Technical Capability | ||
| Layers | 1-28 layers | Min. line width/space | 4mil |
|
Max.board size (single&doule sided) |
600*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish |
HAL lead free,gold flash Immersion silver,Immersion gold ,Immersion Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
|
| Board materials |
FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); heavy copper, Metal base clade laminate |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
|
Base copper thickness(Inner and outer layer) |
Min. thickness: 0.5 OZ Max.thickness: 6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
|
Max.board thickness(single&doule sided) | 3.20mm |
Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
5. How many types of surface finish ACCPCB can do?
ACCPCB has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
6. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
