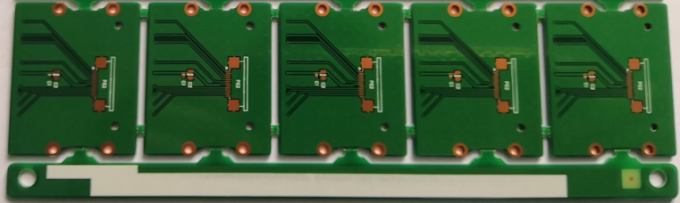

Rigid 1.30mm TS16949 Multilayer PCB Board With Green Solder Mask

Rigid 1.30mm TS16949 Multilayer PCB Board With Green Solder Mask

Rigid 1.30mm TS16949 Multilayer PCB Board With Green Solder Mask
Rigid 1.30mm TS16949 Multilayer PCB Board With Green Solder Mask
Rigid 1.30mm TS16949 Multilayer PCB Board With Green Solder Mask
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1116126
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: KBFR4 TG170 Thickness: 1.30 Mm
Surface Finish: LEAD FREE HAL Layer: 4Layer
Copper Thicknes:: 2.5 0Z In All Layer PCB Standard: IPC-A-610 D
Type: Customized PCB Min Holes Size: 4mil
Min. Line Width: 4mil Min Copper Thicness: 20um
Solder Mask Color: Green,yellow, Red, Black Etc. Application: Printer Machines
High Light:

TS16949 Multilayer PCB Board

,

1.30mm Multilayer PCB Board

,

TG170 Rigid Multilayer PCB

Rigid 1.30mm TS16949 Multilayer PCB Board With Green Solder Mask





Production description :

customized PCB and used for printer machines. PCB prototype,samll volum, middle and large volume. no MOQ request for new order. for repeat order, just meet 3sq.m.



Key Specifications of LED street light PCB:

Production Types:  Rigid PCB

Layer :

4 layer
Base Material : FR4
Copper Thickness :  2.5 oz
Board Thickness : 0.4 mm
Min. Finish Hole Size :  8 mil  (0.10mm)
Min. Line Width :  4 mil
Min. Line Spacing :  4 mil
Surface Finishing : LEAD FREE HAL
Drilling hole tolerance: +/-3 mil    (  0.075mm )
Min Outline tolerance : +/-4 mil    (  0.10mm )
Working panel size :  max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow :  no more than 0.75 %



PCB Flow Chart.pdf



Products Application:

1, Security monitor

2, Telecom Communication
3, Vehicle Electronices
4, Consumer Electronics
5, Industrial controls
6, Military & Defense



Rigid PCB Technical Capability:

 Items                                      Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm



Lead Time :

Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18days

Rigid 1.30mm TS16949 Multilayer PCB Board With Green Solder Mask 0


FAQ :


1. What kinds of boards can ACCPCB process?

    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.


3. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


4. How many types of surface finish ACCPCB can do?

   ACCPCB has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.



5. How do you make the impedance calculation?

   The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
