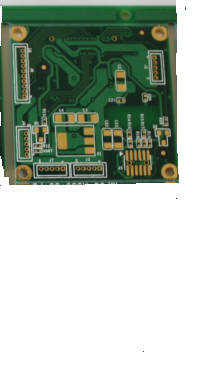

Fiberglass Multilayer PCB Board Green Solder Mask 1.0mm Thickness

Fiberglass Multilayer PCB Board Green Solder Mask 1.0mm Thickness

Fiberglass Multilayer PCB Board Green Solder Mask 1.0mm Thickness
Fiberglass Multilayer PCB Board Green Solder Mask 1.0mm Thickness
Fiberglass Multilayer PCB Board Green Solder Mask 1.0mm Thickness
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P111681
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR4 Fiber Glass Thickness: 1.0 Mm
Surface Finish: ENIG Layer: 6Layer
Copper Thicknes:: 1.50Z In All Layer PCB Standard: IPC-A-610 D
Type: Customized PCB Min Holes Size: 4mil
Min. Line Width: 4mil Min Copper Thicness: 20um
Solder Mask Color: Green,yellow, Red, Black Etc. Application: LCD TV
High Light:

fiberglass Multi Layer Circuit Board

,

1.0mm 6 layer Circuit Board

,

1.0mm Multi Layer Circuit Board

fiberglass Multilayer PCB Board Green Solder Mask 1.0mm Thickness





Production description :



customized 6layer board for LCD TV application.  we can accept PCB prototype,small volum, middle and large volume. no MOQ request for new order. for repeat order, just meet 3sq.m.





Key Specifications of  PCB:



Production Types: Rigid  Multilayer PCB

Layer :

6 layer
Base Material : KB FR4
Copper Thickness :  1 oz
Board Thickness :  1.0 mm
Min. Finish Hole Size :  8 mil  (0.10mm)
Min. Line Width :  4 mil
Min. Line Spacing :  4 mil
Surface Finishing : ENIG
Drilling hole tolerance: +/-3 mil    (  0.075mm )
Min Outline tolerance : +/-4 mil    (  0.10mm )
Working panel size : max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow : no more than 0.75 %





PCB Flow Chart.pdf





Rigid PCB Technical Capability:



 Items                                      Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm







Products Application:



1, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;



2, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;



3, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;



4, Vehicle Electronices: Car etc;



5, Industrial controls: Medical device ,UPS equipment, Control device etc;



6, Military & Defense : Military Weapons etc;
