| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO,SGS,TS16949 |
| Model Number: | S1021 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T ,Western Union,Paypal |
| Supply Ability: | 50000SQ.M/Per Month |

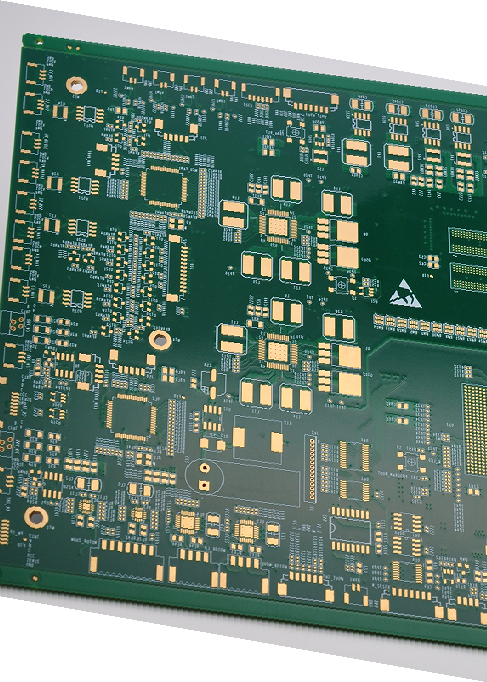

| Material: | KB FR4 | Count: | 16 Layer |
|---|---|---|---|
| Surface Finish: | Immersion Gold | Application: | Electronic Device |
| Solder Mask: | Green,black, Yellow Etc. | Copper Thickness: | 1.5oz All Layer |
| Min. Hole Size: | 8 Mil/6 Mil | Min. Line Spacing: | 4mil |
| Min. Line Width: | 4mil | Service: | Customize |
| High Light: | 1.5oz Multilayer PCB Boards,4mil Multilayer PCB Boards,1.5oz multilayer circuit board |
||
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
3. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
