| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO,SGS,TS16949 |
| Model Number: | S1021412 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T ,Western Union,Paypal |
| Supply Ability: | 50000SQ.M/Per Month |
| Material: | KB FR4tg130 | Count: | 6layer |
|---|---|---|---|
| Surface Finish: | OSP | Application: | Power Control Cabinets |
| Solder Mask: | Blue | Copper Thickness: | 2oz All Layer |
| Min. Hole Size: | 8 Mil/6 Mil | Min. Line Spacing: | 4mil |
| Min. Line Width: | 4mil | Service: | Customized PCB |
| High Light: | OSP HDI PCB Board,Tg150 HDI PCB Board,KB FR4 HDI PCB Board |
||
6 Layer KBFR4 TG150 HDI PCB Board for traffic control system application
Production description :

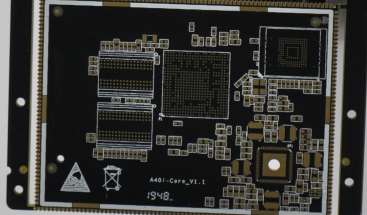

It is 6layer HDI board. black solder mask board. it has blinded and buried vias.we can accep PCB prototype,samll volum, middle and large volume. no MOQ request for new boards.
Key Specifications of tablet PCB board :
|
Production Types: |
Rigid PCB |
|
Layer : |
6layer |
|
Base Material : |
KBFR4 tg150 |
|
Copper Thickness : |
1oz |
|
Board Thickness : |
0.4mm |
|
Min. Finish Hole Size : |
8 mil (0.20mm) |
|
Min. Line Width : |
4 mil |
|
Min. Line Spacing : |
4 mil |
|
Surface Finishing : |
immersion tin |
|
Drilling hole tolerance: |
+/-3 mil ( 0.075mm ) |
|
Min Outline tolerance : |
+/-4 mil ( 0.10mm ) |
|
Working panel size : |
max:1200mmX600mm (47'' X24'') |
|
Outline profile: |
CNC routing + V-cut |
|
Solder mask : |
LPI Solder mask, Peelable mask |
|
Solder Mask Color : |
Black |
|
Certificate : |
UL, CQC, TS16949, ISO14000, ROHS |
|
Silkscreen color : |
White |
|
Twist and Bow : |
no more than 0.75 % |
Products Application:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
Technology Capability:
| Item | Technical Parameters |
| Layers | 1-28 Layers |
| Inner Layer Min Trace/Space | 4/4 mil |
| Out Layer Min Trace,Space | 4/4 mil |
| Inner Layer Max Copper | 4 OZ |
| Out Layer Max Copper | 4 OZ |
| Inner Layer Min Copper | 1/3 oz |
| Out Layer Min Copper | 1/3 oz |
| Min hole size | 0.15 mm |
| Max.board thickness | 6 mm |
| Min.board thickness | 0.2mm |
| Max.board size | 680*1200 mm |
| PTH Tolerance | +/-0.075mm |
| NPTH Tolerance | +/-0.05mm |
| Countersink Tolerance | +/-0.15mm |
| Board Thickness Tolerance | +/-10% |
| Min BGA | 7mil |
| Min SMT | 7*10 mil |
| Solder mask bridge | 4 mil |
| Solder mask color | White,black,blue,green,yellow,red,etc |
| Legend color | White,black,yellow,gray,etc |
| Surface finish | HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG |
| Board materials | FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB |
| Impedance control | +/-10% |
| Bow and twist | ≤0.5 |
FAQ :
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
Contact Person: sales
Tel: +8615889494185
