| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1116131 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-12days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Per Month |
| Material: | NanyaFR4 Tg150 | Thickness: | 1.0mm |
|---|---|---|---|
| Surface Finish: | Immersion Gold | Layer: | 14L |
| Pcb Standard: | IPC-A-610 D | Usage: | OEM Electronics |
| Copper Thickness: | 1oz | Min. Line Spacing: | 0.2mm |
| Min. Hole Size: | 0.1mm | Product Name: | Printed Circuit Board |
| Solder Mask: | Green | Type: | OEM PCB,customized PCB |
| High Light: | 1.0mm Thickness High Density Pcb,1oz High Density Pcb,Immersion Gold High Density Pcb |
||

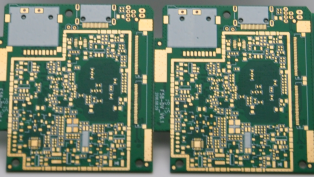

14 Layer 1.0mm Thickness High Density Pcb With Immersion Gold Surface Finishing
14 layer 1.0mm thickness HDI PCB board with Immersion Gold Surface Finishing
Production description :
this board is 12 layer with 21oz copper thickness. all of these boards are met UL,TS16949, ISO9001 etc.PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order.
Key Specifications/Special Features :
| Layer : | 12 Layers |
| Base Material : | Nanya FR4 |
| Copper Thickness : | 1oz in all layer |
| Board Thickness : | 1.0mm |
| Min. Hole Size : | 10 mil |
| Min. Line Width : | 8 mil |
| Min. Line Spacing : | 8 /mil |
| Surface Finishing : | immersion gold |
| Solder Mask Color : | Green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Outline profile : | Routing, punching |
| Twist and bow : | 0.75% |
| Immpedance control : | +/- 10% |
| Solder mask : | LPI solder mask, peelable mask |
ACCPCB Technical Capability.pdf
Products Application:
1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;
2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;
3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;
4, Industrial controls: Medical device ,UPS equipment, Control device etc;
5, Vehicle Electronices: Car etc;
6, Military & Defense : Military Weapons etc;
1. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
2. How many types of surface finish ACCPCB can do?
O-the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
