Place of Origin: | China |
Brand Name: | ACCPCB |
Certification: | ISO,UL,SGS,TS16949,ROHS |
Model Number: | P1213 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Vacuum Packing With Desiccant |
Delivery Time: | 6-10days |
Payment Terms: | T/T / Western Union / Paypal |
Supply Ability: | 35,000SQ.M/Per Month |
Finish Thickness: | 1.30±10%mm | Boare Size: | 180.00X 160.00mm |
---|---|---|---|
Surface Finish: | Gold Finger | Dielectric Constant: | 4.2 |
Application: | Laser Making Machines | Solder Mask: | Green |
Copper Thickness: | 1.2oz | Legends: | White |
Outline Profile: | Routing | Min Line Space: | 0.10mm / 4mil |
High Light: | 1.30mm PWB Board,FR4 1.30mm PWB Board,FR4 PWB Board |

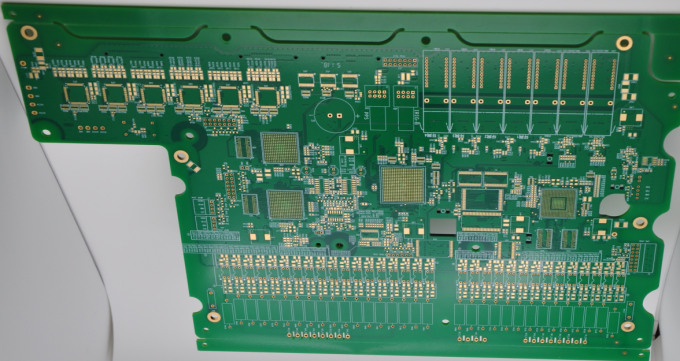

FR4 1.30mm PWB Board green board for laser marking Machines with ROHS Certification
Production description :
this board is 4 layer. it is use for machines. all of our PCB boards are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order.
Layer count: | 4layer |
Material : | FR4 |
Finish thickness : |
1.3±10%mm |
Board Size : | 180.00X160.00mm |
Minimum width/spacing : |
0.127 / 0.127mm |
Minimum via dia : |
0.25 mm |
Surface finish : | gold finger |
Solder mask : |
green |
Legends : | white |
Certification : | UL ROHS SGS,ts16949 |
Working panel size : | max:1200mmX600mm (47'' X24'') |
Outline profile: | Punching, Routing , CNC routing + V-cut |
Solder mask : | LPI Solder mask, Peelable mask |
Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
Twist and Bow : | no more than 0.75 % |
Here is our PCB order capability:
Layer : up to 20 layers
Materials : FR-4, FR4 High Tg/ High CTI Material
TG : 130-170
Surface : HASL LF , Immersion Gold/Silver/Tin, OSP, Gold Plated
Min drill size : 0.10mm
Min track/spacing : 4/4-mil
Buried and blind via : 0.2mm
CNC Milling and V-cut
Solder mask colors : Green, Blue, Black, White, Red and Yellow, Matte green, Matte black, Matte Blue
Silkscreen colors : black, white and yellow
Half Holes
Impedance control
Blue Peelable Mask
Carbon Treated
HDI available
Products Application:
1, Consumer Electronics
2, Telecom Communication
3, Vehicle Electronices
4, Security monitor
5, Industrial controls
6, Smart Home
7, Military & Defense
FOB Port : Hong Kong / Shenzhen
Lead Time : 6-10 days
HTS Code : 8534.00.10
Dimensions Per Carton : 37X27X22 cm
Weight Per Carton : 20 Kilograms
FAQ :
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
5. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
