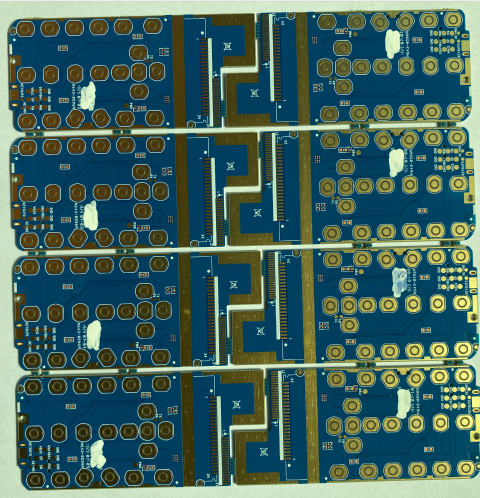

KB FR4 Material Printed Circuit Board 1.60mm Thickness blue solder mask for power supply

KB FR4 Material Printed Circuit Board 1.60mm Thickness  blue solder mask for power supply

Key Specifications/Special Features:

Here is our PCB order capability:

• Layer :  top 20 layers
• Materials : FR-4,  FR4 High Tg
• TG : 130-180
• Surface : HASL , Immersion Gold/Silver/Tin, OSP
• Min drill size : 0.10mm
• Min track/spacing : 4/4-mil
• Buried and blind via : 0.2mm
• CNC Milling and V-cut
• Solder mask colors : Green, Blue, Black, White, Red and Yellow, Matte green, Matte black, Matte Blue
• Silkscreen colors : black, white and yellow
• Half Holes
• Impedance control
• Blue Peelable Mask
• Carbon Treated
• HDI available

Main Export Markets:

• Asia
• Australasia
• Central/South America
• Eastern Europe
• Mid East/Africa
• North America
• Western Europe

Shipping Information :

FOB Port :  Hong Kong / Shenzhen

Lead Time :  6-10 days

HTS Code :  8534.00.10

Dimensions Per Carton : 37X27X22 cm

Weight Per Carton : 20 Kilograms

FAQ :
1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

2. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.

3. How many types of surface finish ACCPCB can do?

    the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.

4. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

5. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
