| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1143 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 25000SQ.M/PER MONTH |
| Material: | NYFR4TG180 | Layer: | Multilayer |
|---|---|---|---|
| Feature: | ENIG | Copper Thickness: | 2oz Inner Layer / 2oz Outlayer |
| Board Thickness: | 1.60MM | ||
| High Light: | high density interconnect pcb,double sided copper clad board |
||

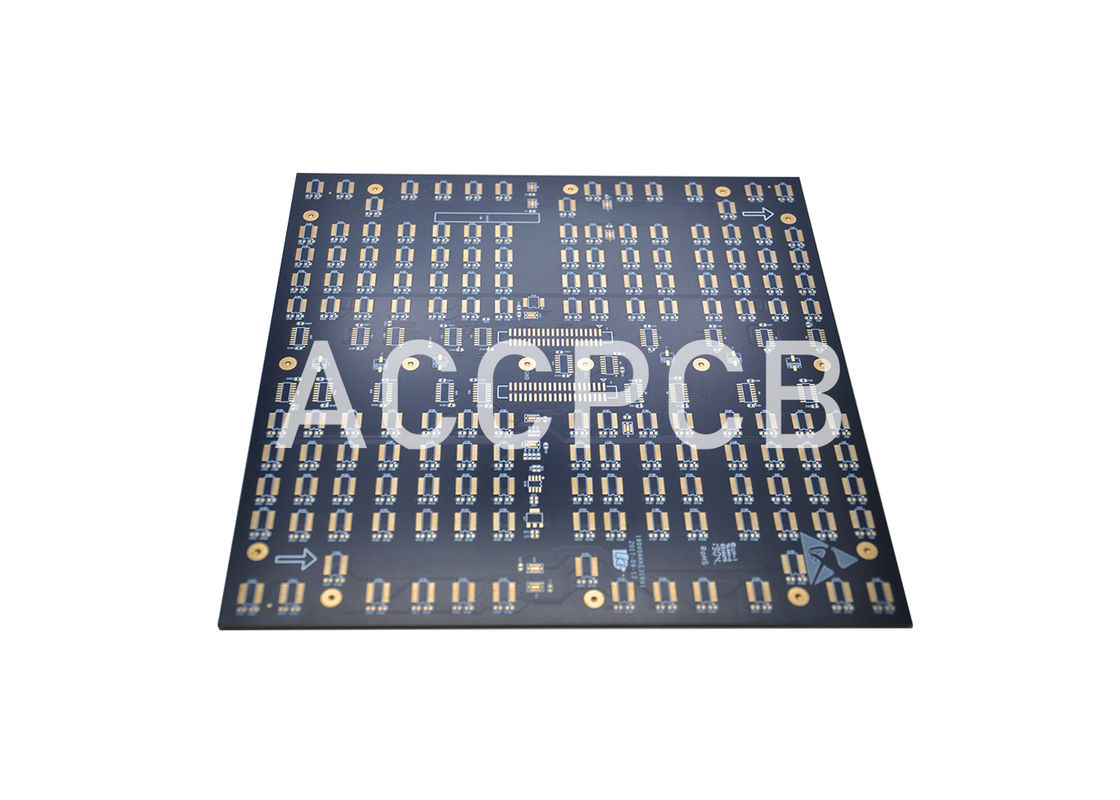

Multilayer HDI PCB Board NanYa FR4 TG180 Material with Black Soldermask
Key Specifications/Special Features:
| Number of layers : | 14 L |
| Base-material : | NYFR4TG180 |
| Thickness : | 1.60 mm+/-10% |
| Final-Cu : | 70um |
| Blind and buried via : | Yes |
| Min. Drill hole : | 0.25mm |
| Min. Line space : | 0.23mm |
| Min. Line width : | 0.23mm |
| Mech. treatment : | Routing |
| Surface treatment : | ENIG |
| Solder-mask : | Green |
| Legend-Print : | white |
| 100% E-test : | Yes |
Lead Time:
| Types |
(Max ㎡/month) |
Samples (days) |
Mass Production(days) | ||
| New PO | Repeat PO | Urgent | |||
| 2layer | 50000 sq.m/month | 2-3 | 10-11 | 8-9 | 4 |
| 4layer | 5-6 | 11-12 | 9-11 | 5 | |
| 6layer | 6-7 | 13-14 | 12-14 | 6 | |
| 8layer | 7-8 | 16-18 | 14-15 | 7 | |
Advantages :
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery
FAQ:
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
Contact Person: sales
Tel: +8615889494185
