Place of Origin: | China |
Brand Name: | ACCPCB |
Certification: | ISO, UL, SGS,TS16949 |
Model Number: | P1008 |
Minimum Order Quantity: | 20PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Vacuum packing with desiccant |
Delivery Time: | 8-15 Days |
Payment Terms: | L/C / D/A / T/T / Western Union |
Supply Ability: | 30,000SQ.M/PER MONTH |
Material: | FR4 TG170 | Thickness: | 1.60mm |
---|---|---|---|
Number Of Layers: | 2layer | Min. Line Spacing: | 0.1mm / 4mil |
Color: | Green Solder Mask | Min. Hole Size: | 0.2mm |
High Light: | dc dc converter pcb,lcd display pcb |

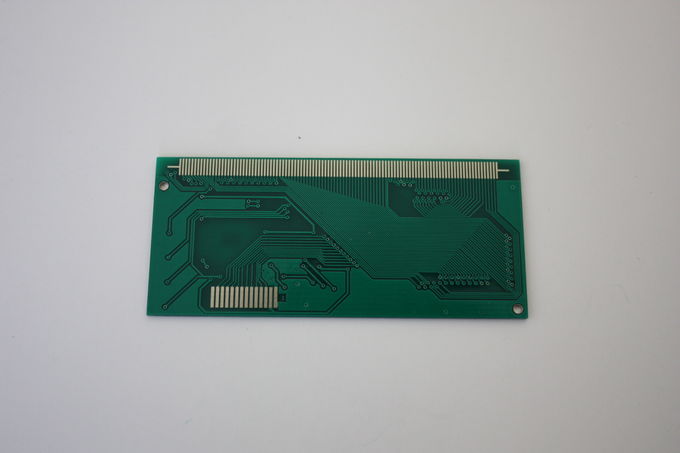

High TG PCB HAL Lead Free PCB Fully AOI E-Testing Inspection for DC Converter apply
Key Specifications/Special Features :
Layer : | 2layers |
Base Material : | FR4TG170 |
Copper Thickness : | 1 / 1 oz |
Board Thickness : | 2.0mm |
Min. Hole Size : | 6mil / 0.15mm |
Min. Line Width : | 4/4 mil |
Min. Line Spacing : | 4/4mil |
Surface Finishing : | Lead Free HAL |
Solder Mask Color : | Green |
Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
Silkscreen color : | White |
Outline : | Routing,V-Groove, Beveling punch |
Primary Competitive Advantages:
No MOQ, 14 years of PCB turnkey services
Quick turn, prototype, low & medium & high volume
OEM services provide
ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
100% E-test, visual, AOI inspection, including X-ray, 3D microscope
Fast response within 24 hours
Application:
Industril Control System
Power Supply
LED drive, LED Lighting
Communication Device
automotive electronics
Security Electronics
Household Control
Digital Appliances
Frequency converter
Medical Device
Shipping Information:
FOB Port : Hong Kong / Shenzhen Lead Time : 8 - 15 days
HTS Code : 8534.00.10 Dimensions per Carton : 37X27X22mm
Weight Per Carton : 20 Kilograms
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
4. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
5. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
6. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
