| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1029 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, T/T, Western Union，Paypal |
| Supply Ability: | 30000SQ.M/Per Month |
| Material: | FR4 | Application: | Power Amplifier |
|---|---|---|---|
| Cooper Thickness: | 3 Oz Each Layer | Board Thickness: | 3.0mm |
| Surface Finish: | Immersion Gold | Feature: | Rigid Circuit Boards |

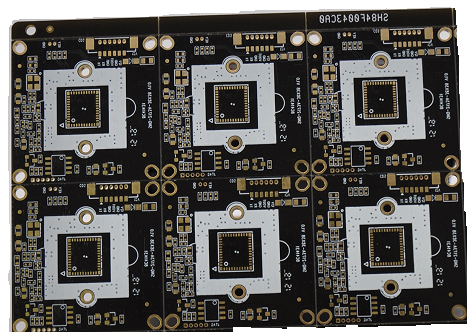

Heavy Copper PCB with 2 oz copper thickness and Black Solder Mask for Power Amplifier
Layer : 8Layers
Base Material : FR4 tg170
Copper Thickness : 2 oz in all layer
Board Thickness : 2.2 mm
Min. Hole Size : 6 mil / 0. 15mm
Min. Line Width : 4 / 4 mil
Min. Line Spacing : 4 / 4 mil
Surface Finishing : Immersion gold ( au :2micron)
Fire-proof level : 94v0
Solder mask : Black
Certificate : UL, CQC, TS16949, ISO14000, ROHS
ACCPCB Technical Capability.pdf
Quality Goal:
| Category | Performance indicator | Quality Goal |
Delivery | Customer service rate | 99.9% |
| Semi Finished product | Process inspection pass rate | 100% |
| Finished product | FQA Rebate rate | 0.1% |
| Scrapped | 1L scrap rate | 0.5% |
| 2L scrap rate | 1% | |
| Multi Layer scrap rate | 2% | |
| Customers | Customer complaint rate | 0.8% |
| Customer return rate | 0.5% | |
| Customer satisfaction | 99% |
Quality assurance :
Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Product Application Field :
FAQ:
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
4. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
5. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
