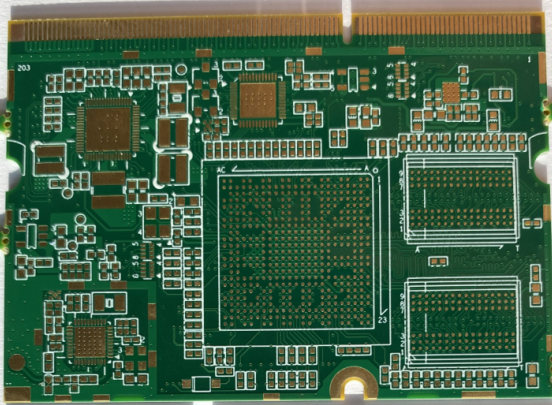

4 Layer Fr4 2.0mm Thickness 3oz PCB Board Prototype For Audio Equipment

4 Layer Fr4 2.0mm Thickness 3oz PCB Board Prototype For Audio Equipment


Production description :

this board is 4 layer. it is used for audio device. we can accept any quantity PCB like samples, small volume and large volume. all of our PCB are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order.


Production Feature:

PCB Flow Chart.pdf

ACCPCB Technical Capability.pdf



Products Application:

1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense




FAQ :

1. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.

4. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
