Material: | FR4 TG180 | Thickness: | 1.62mm |
---|---|---|---|
Surface Finish: | Gold Plating | Layer: | 4L |
Copper Thicknes:: | 2oz In Each Layer | PCB Standard: | IPC-A-610 D |
Type: | Customized PCB | Min Holes Size: | 4mil |
Min. Line Width: | 4mil | Min Copper Thicness: | 20um |
Solder Mask Color: | Black | Application: | Game Machines |
High Light: | 1.62mm Heavy Copper PCB,TG180 Heavy Copper PCB,Nanya FR4 circuit board |

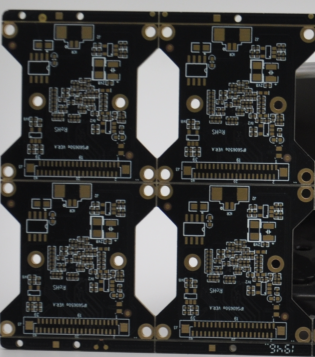

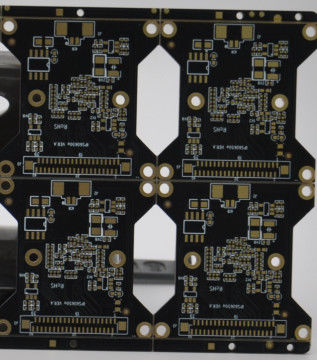

Nanya FR4 TG180 1.62mm Heavy Copper PCB for game machines (all electronic games) application
Production description :
This board is 4layer with 1oz copper thickness. it is use for game machines (all electronic games). all of our PCB have passed ISO9001, UL, ROHS, TS16949 certification. no MOQ request for new boards.
Key Specifications of Impedance PCB:
Production Types: | Rigid PCB |
Layer : |
4Layers |
Base Material : | FR4 tg180 |
Copper Thickness : | 1 oz in every layer |
Board Thickness : | 1.62mm |
Min. Finish Hole Size : | 8 mil (0.10mm) |
Min. Line Width : | 4 mil |
Min. Line Spacing : | 4 mil |
Surface Finishing : | gold plating |
Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
Working panel size : | max:1200mmX600mm (47'' X24'') |
Outline profile: | CNC routing + V-cut |
Solder mask : | LPI Solder mask |
Solder Mask Color : | Black |
Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
Silkscreen color : | White |
Twist and Bow : | no more than 0.75 % |
Products Application:
1, Consumer Electronics: TV, DVD,Digital Caramer, air conditioning, refrigerator, audio equipment, game machines etc;
2, Network, computer peripheral products: network, computer peripheral products: router (ADSL), switches, graphics cards, sound cards, mouse, printer, copier shredders
3, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;
4, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;
5, Industrial controls: Medical device ,UPS equipment, Control device etc;
6, Vehicle Electronices: Car etc;
7, Military & Defense : Military Weapons etc;
Rigid PCB Technical Capability:
Items | Technical Capability | ||
Layers | 1-28 layers | Min. line width/space | 4mil |
Max.board size (single&doule sided) |
600*1200mm | Min.annular ring width: vias | 3mil |
Surface finish |
HAL lead free,gold flash Immersion silver,Immersion gold ,Immersion Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
|
Board materials |
FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); heavy copper, Metal base clade laminate |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
Base copper thickness(Inner and outer layer) |
Min. thickness: 0.5 OZ Max.thickness: 6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
|
Max.board thickness(single&doule sided) | 3.20mm |
FAQ :
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
