| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1116123 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10-12days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Per Month |
| Material: | FR4 TG170 | Thickness: | 1.80mm |
|---|---|---|---|
| Surface Finish: | Immersion Gold | Layer: | 12L |
| Copper Thicknes:: | 2oz In Each Layer | PCB Standard: | IPC-A-610 D |
| Impedance: | 90ohm | Min Holes Size: | 4mil |
| Min. Line Width: | 4mil | Min Copper Thicness: | 20um |
| Solder Mask Color: | Green,yellow, Red, Black Etc. | Application: | LCD Monitor |
| High Light: | 1.80mm Impedance Control PCB,TG170 Impedance Control PCB,2OZ Impedance Control PCB |
||

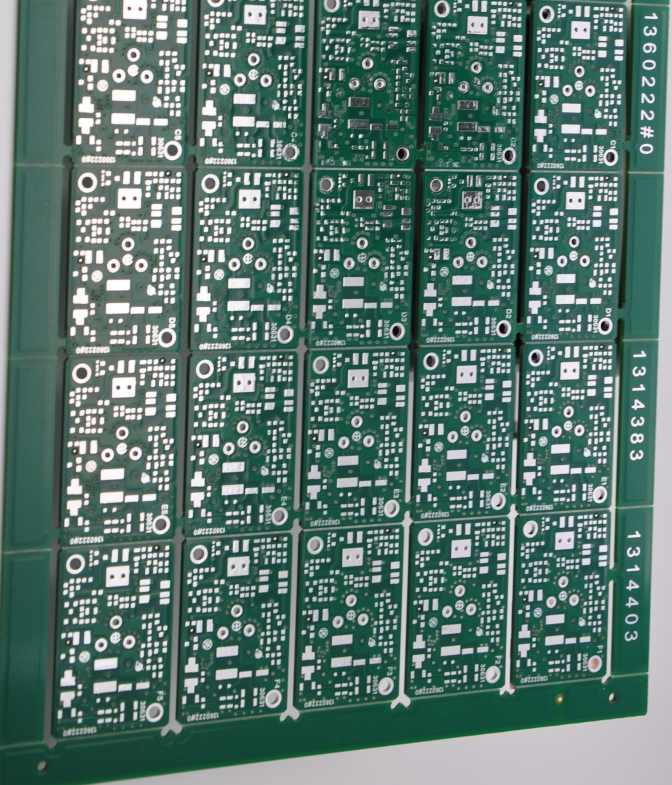

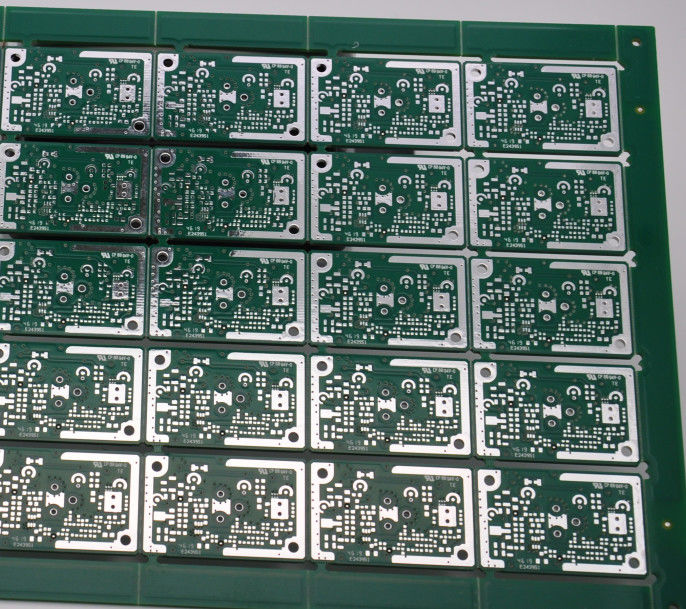

fr4TG170 2 OZ Copper 12 Layers 1.80mm Impedance Control PCB
Production description :
this board is 12layer PCB it is used on wireless remote control production. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards.
Production description of Impedance PCB:
| Production Types: | fiberRigid PCB |
|
Layer : |
12 Layers |
| Base Material : | FR4 tg170 |
| Copper Thickness : | 2 /2 / 2 / 2 / 2 / 2/ 2/ 2/2/2/2/2 oz |
| Board Thickness : | 1.80mm |
| Min. Finish Hole Size : | 8 mil (0.10mm) |
| Min. Line Width : | 4 mil |
| Min. Line Spacing : | 4 mil |
| Surface Finishing : | ENIG,OSP,HASL,Immersion Gold,Gold Plating |
| Drilling hole tolerance: | +/-3 mil ( 0.075mm ) |
| Min Outline tolerance : | +/-4 mil ( 0.10mm ) |
| Working panel size : | max:1200mmX600mm (47'' X24'') |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Solder mask : | LPI Solder mask, Peelable mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Silkscreen color : | White |
| Twist and Bow : | no more than 0.75 % |
Products Application:
1, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;
2, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;
3, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;
4, Vehicle Electronices: Car etc;
5, Industrial controls: Medical device ,UPS equipment, Control device etc;
6, Military & Defense : Military Weapons etc;
Rigid PCB Technical Capability:
| Items | Technical Capability | ||
| Layers | 1-28 layers | Min. line width/space | 4mil |
|
Max.board size (single&doule sided) |
600*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish |
HAL lead free,gold flash Immersion silver,Immersion gold ,Immersion Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
|
| Board materials |
FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); heavy copper, Metal base clade laminate |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
|
Base copper thickness(Inner and outer layer) |
Min. thickness: 0.5 OZ Max.thickness: 6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
|
Max.board thickness(single&doule sided) | 3.20mm |
Lead Time :
| Lead Time | 2 /L | 4 /L | 6/ L | 8/ L |
| Sample Order | 3-5days | 6-8days | 10-12days | 12-14days |
| Mass Production | 7-9days | 8-10days | 12-15days | 15-18days |
FAQ :
1. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
4. How many types of surface finish ACCPCB can do?
ACCPCB has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
5. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
