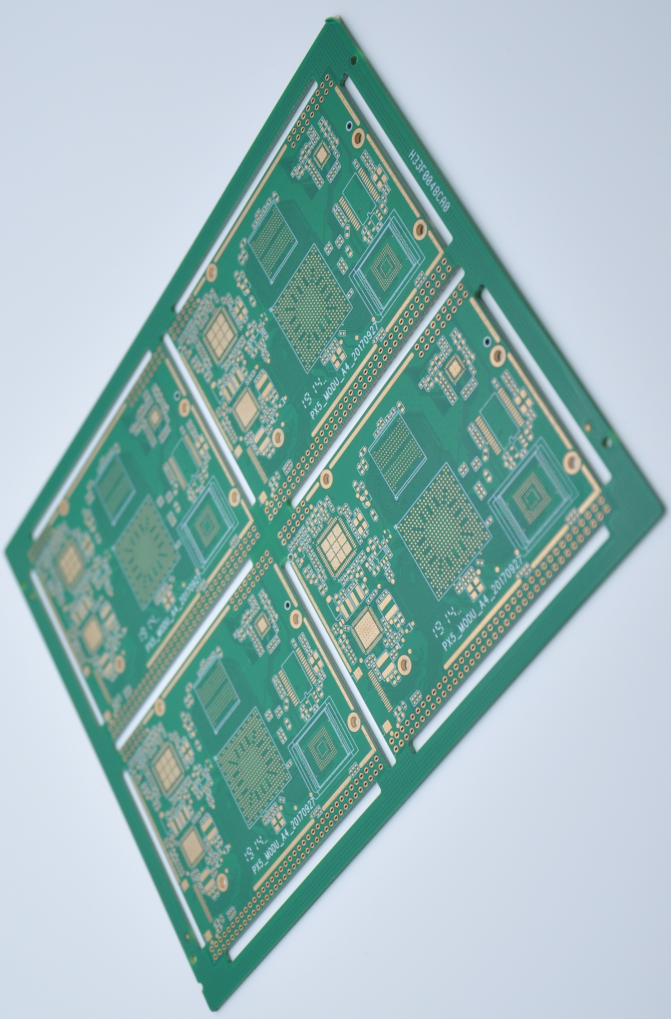

12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold

12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold

12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold
12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold
12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO,SGS,TS16949
Model Number: S10691
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Vacuum packing
Delivery Time: 3-5days
Payment Terms: T/T ,Western Union,Paypal
Supply Ability: 50000SQ.M/Per Month
Contact Now
Detailed Product Description
Material: FR41g170 Count: 12 Layer
Surface Finish: Immersion Gold Usage: Electronics Equipment
Solder Mask: Green Copper Thickness: 1.5oz All Layer
Board Thickness: 1.6mm Min. Hole Size: 0.1mm
Min. Line Spacing: 4mil Min. Line Width: 4mil
Surface Finishing: ENIG
High Light:

tg170 Prototype PCB Board

,

1.5oz FR4 Prototype PCB Board

,

12 Layer Tg170 Prototype PCB

12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold



Production description :

this board is 12 layer pcb. it is used on electronic control . we can accep PCB prototype,samll volum, middle and large volume. no MOQ request for new boards, for repeat order, just meet 3sq.m.



Key Specifications/Special Features:

Number of layers:

12 layer

Base material:

FR4tg170

Copper thickness:

1.5 oz Cu in all layer

Thickness:

1.58 mm

Size:

160 x 200 mm

Cooper In holes:

min 20um

Surface finishing:

immersion gold

Solder mask:

LPI,peelable mask

Solder mask:

Green

Working panel size :

max:1200mmX600mm (47'' X24'')

Outline profile:

Punching, Routing , CNC routing + V-cut

Certificate :

UL, CQC, TS16949, ISO14000, ROHS

Twist and Bow :

no more than 0.75 %

Solder mask :

LPI Solder mask, Peelable mask

Min Line width/space:

0.10mm/0.10mm

Base Copper thickness:

0.5oz-6oz

Aspect ratio:

10:1(max)



PCB Flow Chart.pdf

Products Application:

Our products are widely used in meter, medical, solar energy, mobile, communication, industrial control, power electronics,security, consuming, computer, automotive, aerospace, military and so on. Over 75% of our products are exported to Europe, North America, Japan and other Asia Pacific countries.



12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold 0

Technology Capability:

Item Technical Parameters
Layers 1-28 Layers
Inner Layer Min Trace/Space 4/4 mil
Out Layer Min Trace,Space 4/4 mil
Inner Layer Max Copper 4 OZ
Out Layer Max Copper 4 OZ
Inner Layer Min Copper 1/3 oz
Out Layer Min Copper 1/3 oz
Min hole size 0.15 mm
Max.board thickness 6 mm
Min.board thickness 0.2mm
Max.board size 680*1200 mm
PTH Tolerance +/-0.075mm
NPTH Tolerance +/-0.05mm
Countersink Tolerance +/-0.15mm
Board Thickness Tolerance +/-10%
Min BGA 7mil
Min SMT 7*10 mil
Solder mask bridge 4 mil
Solder mask color White,black,blue,green,yellow,red,etc
Legend color White,black,yellow,gray,etc
Surface finish HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control +/-10%
Bow and twist ≤0.5



  • 12 Layer FR4 Tg170 1.5oz copper thickness Prototype PCB Board and Immersion Gold 1



FAQ:

1. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

   Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
