1.2mm 46 Layer 1.5OZ Prototype PCB Board Quick Turn Pcb Fabrication

1.2mm 46 Layer 1.5OZ Prototype PCB Board Quick Turn Pcb Fabrication

1.2mm 46 Layer 1.5OZ Prototype PCB Board Quick Turn Pcb Fabrication
1.2mm 46 Layer 1.5OZ Prototype PCB Board Quick Turn Pcb Fabrication
1.2mm 46 Layer 1.5OZ Prototype PCB Board Quick Turn Pcb Fabrication
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: P1116121
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Supply Ability: 30,000SQ.M/Per Month
Contact Now
Detailed Product Description

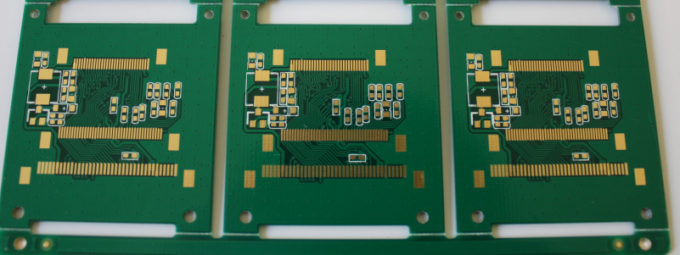

Material: KB FR4 Thickness: 1.2mm
Surface Finish: Immersion Gold Layer: 6L
Copper Thicknes:: 1.5oz In Each Layer PCB Standard: IPC-A-610 D
Type: OEM PCB,customized PCB Min Holes Size: 4mil
Min. Line Width: 4mil Min Copper Thicness: 20um
Solder Mask Color: Green Application: Electronic Equipment
High Light:

1.5OZ Prototype PCB Board

,

1.2mm Prototype PCB Board

,

1.2mm Quick Turn Pcb Fabrication

1.2mm 46 Layer 1.5OZ Prototype PCB Board Quick Turn Pcb Fabrication





Production description :



this board is 6layer with 1.5oz copper thickness. it is used for electronic equipment. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new order. all of these boards are met UL,TS16949, ISO9001 Etc.



PCB Flow Chart.pdf





Production description of High Frequency PCB:



Production Types: Rigid PCB

Layer :

 6 Layers
Base Material :  KBFR4
Copper Thickness :  1.5 /1 / 1 / 1 / 1/  1.5 oz
Board Thickness :  1.20mm
Min. Finish Hole Size :  8 mil  (0.10mm)
Min. Line Width :  4 mil
Min. Line Spacing :  4 mil
Surface Finishing : Immersion Gold
Drilling hole tolerance: +/-3 mil    (  0.075mm )
Min Outline tolerance : +/-4 mil    (  0.10mm )
Working panel size :  max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow :  no more than 0.75 %





Products Application:



1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;



2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;



3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;



4, Industrial controls: Medical device ,UPS equipment, Control device etc;



5, Vehicle Electronices: Car etc;



6, Military & Defense : Military Weapons etc;



Rigid PCB Technical Capability:



 Items                                      Technical Capability
Layers 1-28 layers Min. line width/space 4mil

Max.board size (single&doule

sided)

600*1200mm Min.annular ring width: vias 3mil
Surface finish

HAL lead free,gold flash

Immersion silver,Immersion gold ,Immersion Sn,

hard gold,OSP,ect

Min.board thickness(multilayer) 4layers:0.4mm;
6layers:0.6mm;
8layers:1.0mm;
10layers:1.20mm
Board materials

FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,

PTFE,nelcon,

ISOLA,polyclad 370 HR); heavy copper,

Metal base clade laminate

Plating thickness (Technique:

Immersion Ni/Au)

Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''
Impedance control ± 10%

Distance between

line to board edge

Outline: 0.2mm

V-CUT: 0.4mm

Base copper thickness(Inner

and outer layer)

Min. thickness: 0.5 OZ Max.thickness: 6OZ Min.hole size(board thickness ≥2mm) Aspect ratio≤16
Finished copper thickness Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness :0.5OZ,
Max.thickness : 6 OZ
Max.board thickness(single&doule sided) 3.20mm



Advantages:


• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Lead Time :



Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18day




1.2mm 46 Layer 1.5OZ Prototype PCB Board Quick Turn Pcb Fabrication 0








Contact Details
Accuracy Electronics Technologies Co.,Ltd

Contact Person: sales

Tel: +8615889494185

Send your inquiry directly to us (0 / 3000)
