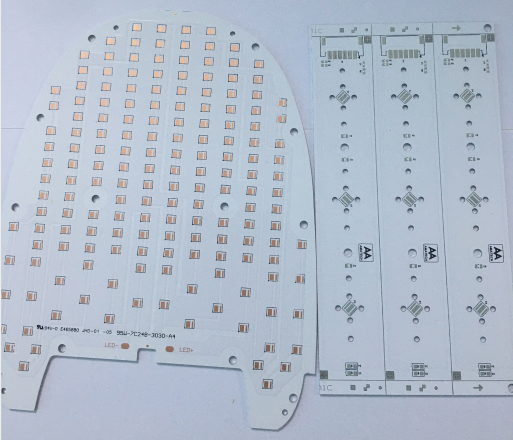

Electronic LED Controler FR4 Single Sided Prototype PCB Board

FAQ :
1. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon,     Telfon, aluminum/copper-based boards, PI, etc.

2. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.

3. How do ACCPCB ensure quality?

   Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

4. What’s the typical process flow for multi-layer PCB?

     Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.

5. How many types of surface finish ACCPCB can do?

   the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
