| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1091 |
| Minimum Order Quantity: | 1-5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packaging |
| Delivery Time: | 12-16days |
| Payment Terms: | L/C / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/PER MONTH |
| Material: | FR4 | Layer: | 6L |
|---|---|---|---|
| Thickness: | 1.80mm | Surface Finishing: | Immersion Gold |
| Max Board Size: | 1600mm*800mm | Application: | Electronics Device |
| High Light: | Fr4 Impedance Control PCB,1.80mm Impedance Control PCB,100Ohm Impedance Control PCB |
||

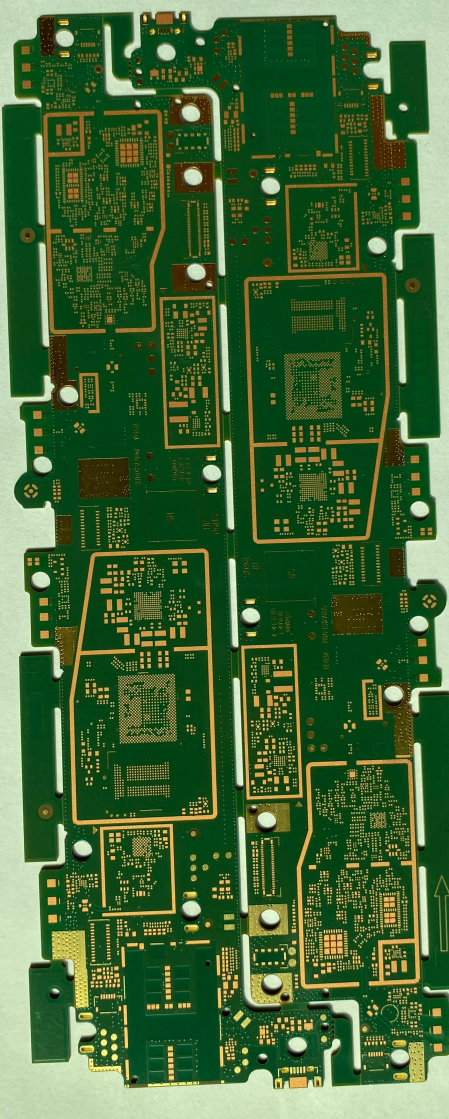

100 Ohm Immerion Gold 6 Layer Fr4 Impedance Control PCB for rf video transmitter
Production description :
this board is 6layer with 100 ohm impedance. it is used on medical device. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards.
Key Specifications/Special Features :
| Base Material : | FR4 6layer |
| Board Thickness : | 1.80mm |
| Layers : | 4 layers |
| Copper thickness : | 1 / 1 / 1 / 1 OZ |
| Surface Finish : | ENIG |
| Impedance : | 100Ohm |
| Min. Hole Size : | 0.150mm |
| Min. Line Width : | 0.1mm/4mil |
| Min. Line Spacing : | 4/4mil(0.1/0.1mm) |
| Capacity of Production : | 50000Sq.m/month |
| Solder mask: | LPI mask , peelable mask |
| Working panel size : | max:1200mmX600mm (47'' X24'') |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Twist and Bow : | no more than 0.75 % |
| Impedance control: | +/-10% |
Quality assurance :
Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Application:
Embedded Software, Industrial Automation and Control, Instrumentation, Medical, Telecom, UPS, Automotive, Access Media and Infomobility, Wireless Security, Submetering, Sensor and Control Products, Optical Transport Systems,Network Equipment, Radars, Military Communications, Naval Systems, Electronic Warfare Systems, Universal Remote, RF Video Transmitter, Wireless Communication Devices, Communication Electronics ,Radio Frequency Remote Controls, Microwave Radio Communications, Audio Systems, Automatic Tracking Satellite Television, Computer Extender Products, Digital Audio ,Repeater Systems, Digital Projection, Digital Video Management Systems, Recorders, Scan Converters, Show Control, Special Effects Systems ect.
Lead Time :
| Lead Time | 2 /L | 4 /L | 6/ L | 8/ L |
| Sample Order | 3-5days | 6-8days | 10-12days | 12-14days |
| Mass Production | 7-9days | 8-10days | 12-15days | 15-18days |
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
4. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
5. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
