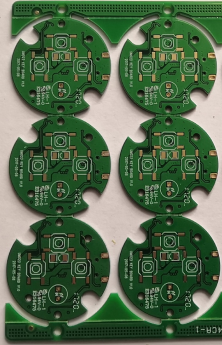

Name: Battery Charger Tg150 High Frequency PCB Board With Immersion Gold
Brand: ACCPCB
SKU: S102125

Home Products High Frequency PCB

Battery Charger Tg150 High Frequency PCB Board With Immersion Gold

Product Details:

Place of Origin:	China
Brand Name:	ACCPCB
Certification:	ISO,SGS,TS16949
Model Number:	S102125

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Vacuum packing
Delivery Time:	3-5days
Payment Terms:	T/T ,Western Union,Paypal
Supply Ability:	50000SQ.M/Per Month

Contact Now

Detailed Product Description

Material:	KB FR4 Tg150	Count:	6layer
Surface Finish:	Immersion Gold	Application:	Electronic Register
Solder Mask:	Blue,Green,black, Yellow Etc.	Copper Thickness:	2oz All Layer
Min. Hole Size:	8 Mil	Min. Line Spacing:	4mil
Min. Line Width:	4mil	Service:	Customized PCB
High Light:	tg150 High Frequency PCB Board , 2oz High Frequency PCB Board , 2oz Immersion Gold PCB Board

Battery Charger Tg150 High Frequency PCB Board With Immersion Gold

Production description :

this board is 16layer. it is used on electronic register. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards, for repeat order, just meet 3sq.m.

Key Specifications of tablet PCB board :

Production Types:	Rigid PCB
Layer :	6L
Base Material :	KB FR4
Copper Thickness :	2 oz
Board Thickness :	0.4mm
Min. Finish Hole Size :	8 mil (0.20mm)
Min. Line Width :	4 mil
Min. Line Spacing :	4 mil
Surface Finishing :	ENIG,OSP,HASL,Immersion Gold,Gold Plating
Drilling hole tolerance:	+/-3 mil ( 0.075mm )
Min Outline tolerance :	+/-4 mil ( 0.10mm )
Working panel size :	max:1200mmX600mm (47'' X24'')
Outline profile:	Punching, Routing , CNC routing + V-cut
Solder mask :	LPI Solder mask, Peelable mask
Solder Mask Color :	Blue, black,yellow, matte green
Certificate :	UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color :	White
Twist and Bow :	no more than 0.75 %

PCB Flow Chart.pdf

Products Application:

1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense

Battery Charger Tg150 High Frequency PCB Board With Immersion Gold 0

Technology Capability:

Item	Technical Parameters
Layers	1-28 Layers
Inner Layer Min Trace/Space	4/4 mil
Out Layer Min Trace,Space	4/4 mil
Inner Layer Max Copper	4 OZ
Out Layer Max Copper	4 OZ
Inner Layer Min Copper	1/3 oz
Out Layer Min Copper	1/3 oz
Min hole size	0.15 mm
Max.board thickness	6 mm
Min.board thickness	0.2mm
Max.board size	680*1200 mm
PTH Tolerance	+/-0.075mm
NPTH Tolerance	+/-0.05mm
Countersink Tolerance	+/-0.15mm
Board Thickness Tolerance	+/-10%
Min BGA	7mil
Min SMT	7*10 mil
Solder mask bridge	4 mil
Solder mask color	White,black,blue,green,yellow,red,etc
Legend color	White,black,yellow,gray,etc
Surface finish	HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG
Board materials	FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB
Impedance control	+/-10%
Bow and twist	≤0.5

Battery Charger Tg150 High Frequency PCB Board With Immersion Gold 1

FAQ :

1. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.
