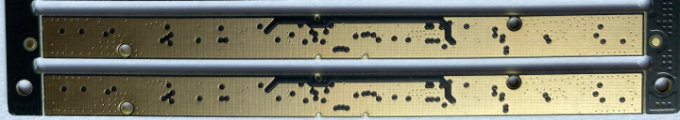

Black Soldermask Nanya FR4 TG 150 PCB Board For Led Lighting

Black Soldermask Nanya FR4 TG 150 PCB Board For Led Lighting

Black Soldermask Nanya FR4 TG 150 PCB Board For Led Lighting
Black Soldermask Nanya FR4 TG 150 PCB Board For Led Lighting
Black Soldermask Nanya FR4 TG 150 PCB Board For Led Lighting
Product Details:
Place of Origin: China
Brand Name: ACCPCB
Certification: ISO, UL, SGS,TS16949
Model Number: S1207130
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Vacuum packing with desiccant
Delivery Time: 10-12days
Payment Terms: L/C / T/T / Western Union / Paypal
Contact Now
Detailed Product Description
Product Name: 6layer Rigid Board Thickness: 1.60mm
Size: 200mmX60mm Min. Line Spacing: 0.1MM / 4MIL
Board Thickness: .08mm Surface Finishing: HAL LEAD FREE, Immersion Gold,immersion Silver /TIN
Copper Thickness: 0.5oz-6oz Min Line Spacing: 4mil (0.1mm)
Min.line Width: 4 Mil ( 0.1mm) Min Drill Hole Size: 0.2mm
High Light:

TG 150 PCB Board

,

FR4 TG 150 PCB

,

Black Solder Mask TG 150 PCB

Black Soldermask Nanya FR4 TG 150 PCB Board For Led Lighting



Nanya FR4 TG150 Lead Free PCB Board with black soldermask for led lighting



Production description :

this board is 6layer with 1oz copper thickness. it is used for led lighting. PCB prototype,small volum, middle and large volume are accepted. no MOQ request for new boards. for repeat order, just meet 3sq.m.

Key Specifications of LED PCB board:

Production Types: Rigid PCB
Layer : 6 layer
Base Material : NanyaFR4 tg150
Copper Thickness : 1 oz
Board Thickness : 1.60mm
Min. Finish Hole Size : 8 mil (0.10mm)
Min. Line Width : 4 mil
Min. Line Spacing : 4 mil
Surface Finishing : ENIG,OSP,HASL,Immersion Gold,Gold Plating
Drilling hole tolerance: +/-3 mil ( 0.075mm )
Min Outline tolerance : +/-4 mil ( 0.10mm )
Working panel size : max:1200mmX600mm (47'' X24'')
Outline profile: Punching, Routing , CNC routing + V-cut
Solder mask : LPI Solder mask, Peelable mask
Solder Mask Color : Blue, black,yellow, matte green
Certificate : UL, CQC, TS16949, ISO14000, ROHS
Silkscreen color : White
Twist and Bow : no more than 0.75 %

PCB Chart.pdf

Products Application:

1, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;

2, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;

3, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;

4, Vehicle Electronices: Car etc;

5, Smart Home: Wearable device ,computers, ipad , Remote Control etc;

6, Industrial controls: Medical device ,UPS equipment, Control device etc;

7, Military & Defense : Military Weapons etc;

Advantages :
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery



Technical Capability:

 ITEMS Capability
 Max. layer count 28L
 Min. line widty 0.08mm
Min. line spacing 0.08mm
 Min. hole size 0.15mm
 Board thickness 0.4-6.0mm
Max. boardsize 520×620mm
(PTH) Hole size tolerance(PTH) ±0.075mm
(NPTH) Hole size tolerance(NPTH) ) ±0.05mm
Holeposition tolerance(Routing) ±0.1mm
 Outline tolerance(Punching) ±0.1mm





Black Soldermask Nanya FR4 TG 150 PCB Board For Led Lighting 0



FAQ:

1. What kinds of boards can ACCPCB process?

    Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


2. What data are needed for PCB production?

   PCB Gerber files with RS-274-X format.


3. What’s the typical process flow for multi-layer PCB?

    Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.


4. How many types of surface finish ACCPCB can do?

  the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.



5. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
