| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | S10186 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10days |
| Payment Terms: | L/C / D/P / T/T / Western Union / Paypal |
| Supply Ability: | 25,000SQ.M/Month |
| Material: | FR4 Tg150 | Thickness: | 1.60mm |
|---|---|---|---|
| Surface Finish: | ENIG | Min. Hole Size: | 0.15MM |
| Copper Thickness: | 0.5-6oz | Product Name: | 94v0 PCB |
| High Light: | enig rohs pcb,halogen free pcb |
||

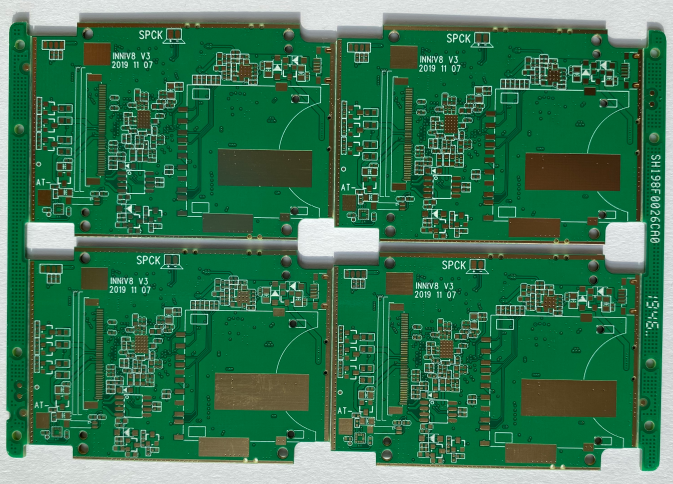

ENIG Surface Finish Lead Free PCB Fabrication 200X230mm For Security Device
Production description :
this board is 4layer PCB it is used on medical device. PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards.
Production Feature:
| Layer : | 6 Layers |
| Base Material : | FR4 |
| Copper Thickness : | 1oz inner Layer, 1oz out layer |
| Board Thickness : | 1.60 mm |
| Surface Finish : | ENIG |
| Min. Hole Size : | 6 mil / 0.15mm |
| Min. Line Width : | 4/4 mil / 0.10/0.10 mm |
| Min. Line Spacing : | 4/4mil / 0.10/0.10mm |
| Application : | Game Driver |
| Certification : | ISO9001, UL, ROHS,TS16949 |
Quality assurance :
Every production process has a special person to test to ensure quality
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Advantages :
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours
Technology Capability:
| Item | Technical Parameters |
| Layers | 1-28 Layers |
| Inner Layer Min Trace/Space | 4/4 mil |
| Out Layer Min Trace,Space | 4/4 mil |
| Inner Layer Max Copper | 4 OZ |
| Out Layer Max Copper | 4 OZ |
| Inner Layer Min Copper | 1/3 oz |
| Out Layer Min Copper | 1/3 oz |
| Min hole size | 0.15 mm |
| Max.board thickness | 6 mm |
| Min.board thickness | 0.2mm |
| Max.board size | 680*1200 mm |
| PTH Tolerance | +/-0.075mm |
| NPTH Tolerance | +/-0.05mm |
| Countersink Tolerance | +/-0.15mm |
| Board Thickness Tolerance | +/-10% |
| Min BGA | 7mil |
| Min SMT | 7*10 mil |
| Solder mask bridge | 4 mil |
| Solder mask color | White,black,blue,green,yellow,red,etc |
| Legend color | White,black,yellow,gray,etc |
| Surface finish | HAL,OSP, Immersion Ni/Au ,Imm silver/SN,ENIG |
| Board materials | FR-4;high TG;HighCTI; halogen free; Aluminum Bsed PCB,high frequency(rogers,isola),copper -base PCB |
| Impedance control | +/-10% |
| Bow and twist | ≤0.5 |
FAQ:
1. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
Contact Person: sales
Tel: +8615889494185
