94v0 Prototype PCB Fabrication ENIG 6 Mil Minimum Hole Size Game Driver Applied

94v0 Prototype PCB Fabrication ENIG 6 Mil Minimum Hole Size Game Driver Applied

Production description :

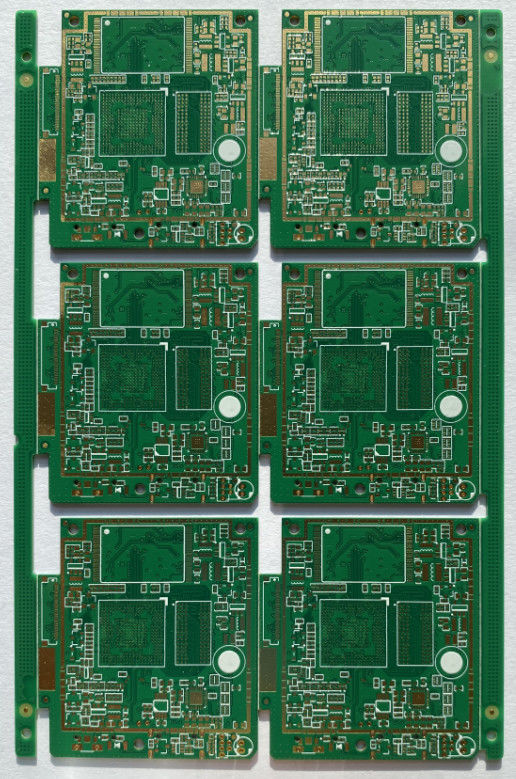

this board is 4layer PCB it is used on game driver.  all board are met UL, TS16949,ISO9001, ROHS etc certification.PCB prototype,samll volum, middle and large volume are accepted. no MOQ request for new boards.

Production Feature:

Quality assurance :

Every production process has a special person to test to ensure quality

Have professional engineers to check the quality

All products have passed CE, FCC, ROHS and other certifications

Advantages :
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours

FAQ:

1. How do ACCPCB ensure quality?

  Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

   Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.

3. What data are needed for PCB production?

    PCB Gerber files with RS-274-X format.

4. How many types of surface finish ACCPCB can do?

    the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.

5. What are the main factors which will affect the price of PCB?

Material;
Surface finish;

Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;

6. How to you make the impedance calculation?

   The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
