| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1103 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10days |
| Payment Terms: | L/C / D/P / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Month |
| Thickness: | 1.0mm | Surface Finish: | Immersion Gold |
|---|---|---|---|
| Size: | 90mmX100mm | Color: | Green Solder Mask |
| Service: | OEM Services Provided | Testing: | 100% E-Testing,100% AOI |
| Copper Thickness: | 1oz Or Customized | Min. Line Width: | 0.15mm |
| Min. Line Spacing: | 0.15mm | Product Name: | PCB Circuit Board |
| High Light: | monitor circuit board,halogen free pcb |
||

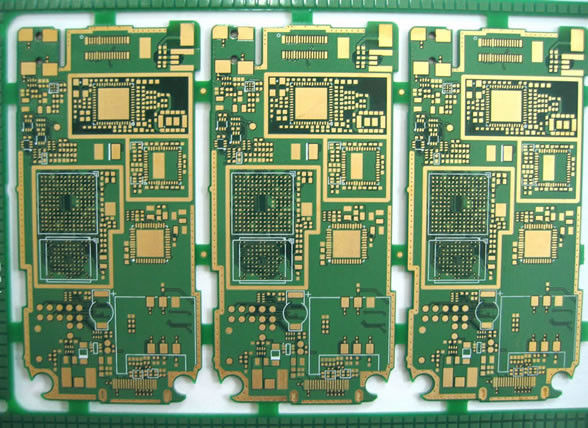

Gold Finger Lead Free PCB AOI Inspection 0.5 Oz Copper Thickness 90mmX80mm
Production description :
this board is 6 layer. it is used for switch device. all of our PCB are met UL, TS 16949,ROHS, ISO Etc. certification. no MOQ request for new order.
Production Feature:
| Layer : | 6Layers |
| Base Material : | FR4 Tg150 |
| Copper Thickness : | 1.2oz in all layer |
| Board Thickness : | 1.00 mm |
| Surface Finish : | Immersion gold |
| Min. Hole Size : | 6 mil, 0.15mm |
| Min. Line Width : | 4/4 mil, 0.10/0.10 mm |
| Min. Line Spacing : | 4/4mil, 0.10/0.10mm |
| Application : | Switch device |
| Certification : | ISO9001, UL, ROHS,TS16949 |
| Outline profile: | Punching, Routing , CNC routing + V-cut |
| Solder mask : | LPI Solder mask, Peelable mask |
| Solder Mask Color : | Blue, black,yellow, matte green |
| Certificate : | UL, CQC, TS16949, ISO14000, ROHS |
| Twist and Bow : | no more than 0.75 % |
ACCPCB Technical Capability.pdf
Advantages :
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
4. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
5. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
6. How to you make the impedance calculation?
The impedance control system is done using some test coupons, the SI6000 soft and the CITS 500s equipment.
