| Place of Origin: | China |
| Brand Name: | ACCPCB |
| Certification: | ISO, UL, SGS,TS16949 |
| Model Number: | P1095 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Vacuum packing with desiccant |
| Delivery Time: | 10days |
| Payment Terms: | L/C / D/P / T/T / Western Union / Paypal |
| Supply Ability: | 30,000SQ.M/Month |
| Material: | FR4 Halogen Free | Thickness: | 2.40mm |
|---|---|---|---|
| Surface Finish: | OSP | Size: | 100mmX120mm |
| Color: | Yellow Solder Mask | Min. Hole Size: | 0.15MM |
| High Light: | enig rohs pcb,monitor circuit board |
||

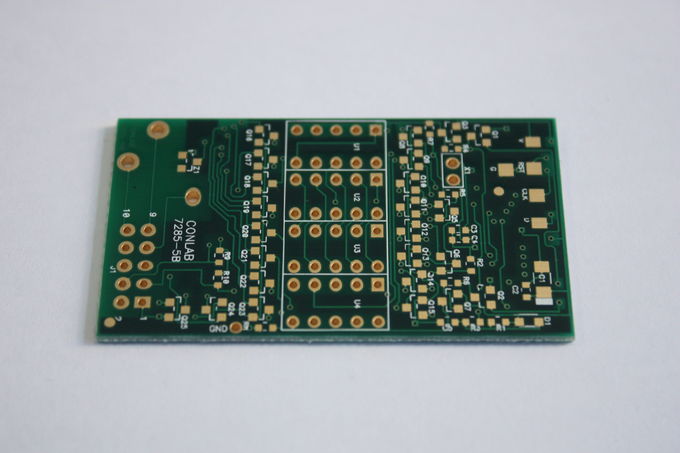

Halogen Free lead free PCB 0.10mm Minimum Hole RoHS Approval for Digital Electronics
ACCPCB Technical Capability.pdf
Production Feature:
| Layer : | 2Layers |
| Base Material : | ITEQFR4 |
| Copper Thickness : | 1/1oz |
| Board Thickness : | 2.20mm |
| Min. Hole Size : | 8mil, 0.2mm |
| Min. Line Width : | 4/4 mil, 0.10/0.10 mm |
| Min. Line Spacing : | 4/4mil, 0.10/0.10mm |
| Surface Finish : | HAL Lead Free |
| Application : | Consumer Electronics |
| Certification : | ISO9001, UL, ROHS,TS16949 |
Quality assurance :
Every production process has a special person to test to ensure quality
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications
Advantages :
▪ No MOQ, 14 years of PCB turnkey services
▪ Quick turn, prototype, low & medium & high volume
▪ OEM services provide
▪ ISO 9001-, ISO 14001-, ISO/TS16949, ISO 13485, IATF16949, OHSAS18001 certified
▪ 100% E-test, visual, AOI inspection, including X-ray, 3D microscope
▪ Fast response within 24 hours
FAQ :
1. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
2. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
4. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
5. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
6. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
